Water Prefiltration PP Melt Blown Filter Cartridge 5μm 30"
Description of Water Prefiltration
WECHANFIB polypropylene melt-blown filter adopts a new process, so that the whole filter has a very hard mechanical properties, the pressure resistance is more than 2 times that of ordinary melt-blown filter, and can be applied to some high viscosity and high solid content of the feed liquid. The process of melt-blowing makes it have a high contaminant capacity and can withstand more impurities. It has better good effect and low resistance to filtration of granular materials, such as metal paint.
Application of Water Prefiltration
- Pharmaceutical field: pre-filtration of all kinds of injections, medicinal liquids and injection washing water, and all kinds of antimicrobials, traditional Chinese medicine injections;
- Food industry: filtration of alcohol, beverage and drinking water;
- Electronic industry: pre-filtration of pure water and ultra-pure water;
- Petroleum and chemical industry: filtration of all kinds of organic solvents, acids and alkalis, and filtration of oilfield injection water.
- Security filtration;
- Clarification filtration.
Features of Water Prefiltration
- Economical & longer life cycle;
- Depth filter cartridges are constructed of 100% pure polypropylene fibers;
- Made of FDA grade PP material without binders, additives or lubricants;
- Non-fiber releasing, suitable in relative high temperatures;
- Available in a wide selection of micron ratings from 1 to 100μm;
- 100,000-level clean room manufactured;
- 100% integrity test for every filter cartridge before delivery.
Operating Characteristic of Water Prefiltration
| Outer Diameter | 2.7”/69mm |
| Length | 10”/254mm 20”/508mm 30”/762mm 40”/1016mm |
| Max. Operation Temperature | 80℃ |
| Max. Operation Pressure | Forward direction: 0.4 MPa(21℃) 0.24 MPa(80℃) *It not recommend for reverse use |
| Integrity Testing | Bubble point≥60KPa 50KPa pressure,diffusion flow＜10 ml/min Anhydrous ethanol was used as the wetting solution at 25°C, and compressed air was used to test the bubble point values against the diffusion flows. |
| Sterilization | 30 times (121.4℃,30 min offline high-pressure steam sterilization) |
| Bacterial Retention Capacity | Minimum retention rate 107 CFU/cm2 The product was tested against Serratia marcescens (ATCC14756) using ASTM F838 method. |
| Extractable Substance | ＜50 mg/m2 After high-pressure steam sterilization(121.4℃,60 min),25℃±2℃ immersing in pure water for 24h |
| Biosafety | The endotoxin level＜0.25 EU/ml, and the extraction solution has no acute toxicity |
| Cleanliness | No fibers or other visible foreign objects were detected in the filtered liquid. *Lamp test according to the Chinese Pharmacopoeia 2020 edition <0904> |

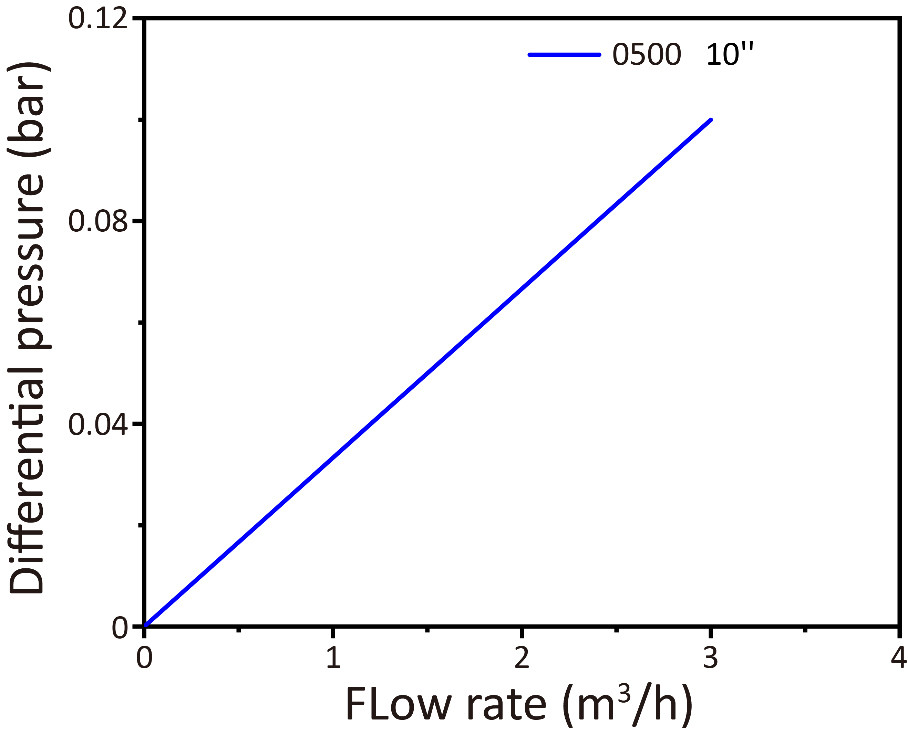

Flow Rate of Water Prefiltration
Naming Regulations of Water Prefiltration
| WF | MB | P | 0500 | 10 | A | S |
| Trademark | Form | Filtration Materials | Accuracy | length | Adapter | O ring |
| WECHANFIB | Melt-blown | P PP | 0500 5μm | 10 10” | | |
| | | | 1000 10μm | 20 20” | | |
| | | | 2000 20μm | 30 30” | | |
| | | | | 40 40” | | |
| Wechange Melt Blown Cartridge Products List |
| Membrane Material | Type No. | Application | Pore Size | Diameter | Length | Adaptor |
| μm | mm | inch |
| PP | WF-MB-P-0500-5 | Liquid Prefiltration, Security Filtration,
Clarification Filtration, Pharmaceutial Pre Filtration, Microelectronical Liquid Pre Filtration, Petroleum & Chemical Liquid Filtration | 5 | 69 | 5" | - |
| PP | WF-MB-P-0500-10 | 5 | 69 | 10" |
| PP | WF-MB-P-0500-20 | 5 | 69 | 20" |
| PP | WF-MB-P-0500-30 | 5 | 69 | 30" |
| PP | WF-MB-P-0500-40 | 5 | 69 | 40" |
| PP | WF-MB-P-1000-5 | 10 | 69 | 5" |
| PP | WF-MB-P-1000-10 | 10 | 69 | 10" |
| PP | WF-MB-P-1000-20 | 10 | 69 | 20" |
| PP | WF-MB-P-1000-30 | 10 | 69 | 30" |
| PP | WF-MB-P-1000-40 | 10 | 69 | 40" |
| PP | WF-MB-P-2000-5 | 20 | 69 | 5" |
| PP | WF-MB-P-2000-10 | 20 | 69 | 10" |
| PP | WF-MB-P-2000-20 | 20 | 69 | 20" |
| PP | WF-MB-P-2000-30 | 20 | 69 | 30" |
| PP | WF-MB-P-2000-40 | 20 | 69 | 40" |
General Description of Water Prefiltration:
PP meltblown filter cartridges for water prefiltration are specifically designed for the preliminary filtration stage in water treatment systems. These cartridges are primarily made of polypropylene (PP) material, formed through the meltblown process. Known for their high filtration efficiency and broad applicability, they are widely used in various fields due to their effective performance and economical benefits.
Application of Water Prefiltration:
1.Security filtration
2.Clarification filtration
Features and Benefits of Water Prefiltration:
* It exhibits excellent chemical stability, capable of withstanding a variety of chemical substances in different water qualities;
* It is heat-resistant;
* It is easy to replace, making it suitable for use in large-scale water treatment applications;
* Strict quality control system, complete production process flow;
* Short delivery period;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* Free technical support;
* Other specific sizes can be customized;
Performance Specifications of Water Prefiltration:
Dimensions(nominal):
| OD | 69mm |
| Length | 10"(254mm),20"(508mm),30"(762mm),40"(1016mm) |
Beer Clarification Filter Cartridge Performance:
| Biosafety | All ingredients comply with USP (United States Pharmacopoeia) Level 6 plastic testing |
| Food Accessibility | All ingredients comply with GB 4806.7-2016 |
| Executive Standard | Q/WCF 001-2021 |
| Cleanliness | The product does not have any particles, fibers, or other foreign objects falling off |
| PH | 1-14 |
| Suggesting Renewal Pressure Difference | 0.2MPa |
Product Tags:
|
|

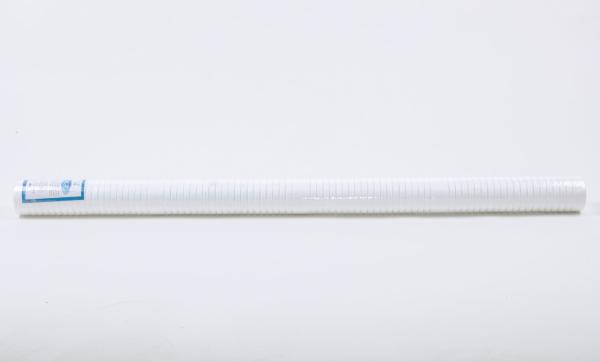

Water Prefiltration PP Melt Blown Filter Cartridge 5μm 30" Images
|
